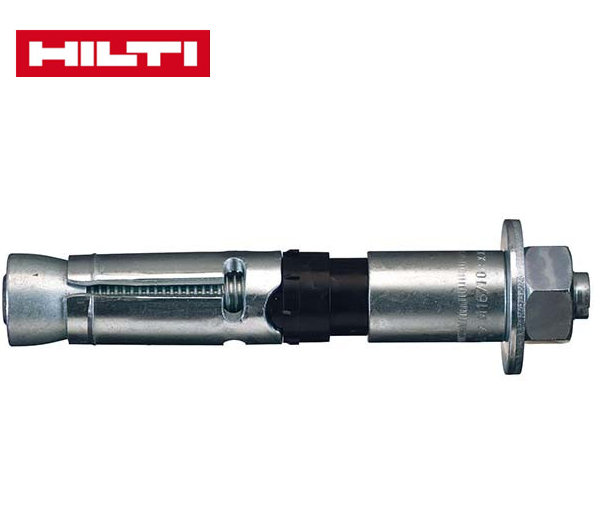

Hilti HSL-3-G high load bearing heavy duty anchor bolt

Anchor type: expansion anchor
Brand: Hilti imported from Germany
Working mode: torque-controlled expansion anchor
Fastening method: penetration, pre-placement
Material composition: carbon steel
Applicable substrate: suitable for cracked concrete and seismic reinforcement
Application areas: curtain wall reinforcement, factory reinforcement and renovation, villa reconstruction and reinforcement, machine room reinforcement, school seismic reinforcement, disaster damage reinforcement, house reinforcement

Product features:

1. High load-bearing tension and high load-bearing shear
2. Controllable expansion allows subsequent expansion
3.ETA option 1 is suitable for cracked and non-cracked concrete
4.ICC-ES/AC 193 is suitable for cracked and non-cracked concrete and earthquakes
5. Suitable for dynamic loads, including fatigue, earthquakes and impacts

Application of Hilti HSL-3-G expansion anchor in actual projects

Product application:

1. Heavy-duty fastening in height and safety-related applications or dynamic load applications, including applications in nuclear power plants
2. Applications when extensive certification support or technical support is required, such as machinery, heavy equipment, steel columns, heavy pipe bearing structures, pumps, beam bearing structures, medical equipment, cantilevers, cranes, car lifts, etc.
