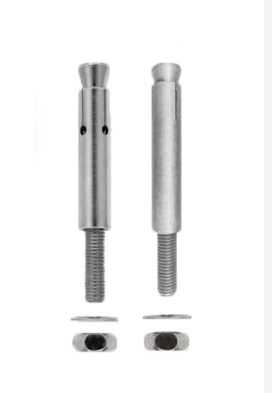

Fischer mold expanded bottom anchor FZA

Product name: Fischer chemical anchor bolt
Category: chemical anchor bolt
Brand: imported from Germany
Application areas: curtain wall reinforcement, factory reinforcement and renovation, villa reconstruction and reinforcement, machine room reinforcement, school earthquake reinforcement, disaster damage reinforcement,
House reinforcement
Anchoring principle: mechanical lock key
Product specifications: M10, M12, M16, M20, M24
Material composition: hot-dip galvanizing can be used

Fischer mold-enlarged bottom anchor bolt FZA description

■Pre-inserted mold-enlarged bottom anchor bolt

■Use mold drill bit FZUB Complete drilling and expansion at one time

■ Use a hammer and installation tool to hit the anchor sleeve to press the sleeve to the conical head, expand it and embed it in the mold expansion bottom drill hole, forming a mechanical lock key effect

Advantages of FZA mold expansion anchor

■ Comply with the mold expansion bottom of the "Concrete Structure Reinforcement Design Code" GB50367-2013 and the "Concrete Structure Post-Anchorage Technical Code JGJ145-2013"

■ Mechanical lock key effect, achieving shallow burial depth and high bearing capacity, can ensure safety

■ Almost no expansion force, especially suitable for anchoring with limited side spacing

■ No need to change the drill bit, use FZUB to complete drilling and expansion at one time

■ Can withstand the design load after installation, no need to wait for solidification
